Trailer Awnings

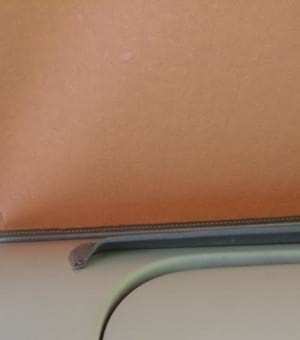

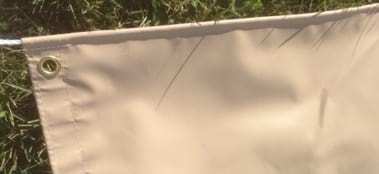

If your travel trailer or RV awning is worn out we can replace it using a heavy duty waterproof tarp. For this application we generally user 18 oz vinyl and finish one of the tarp edges with an embedded welt that will slide into a track on your RV. These welts can be made using 1/4", 5/16" or 3/8" rope. Before ordering your tarp, be sure to measure the diameter of your track as well as the size of the opening (the slit along the track). The rope size you choose should be slightly larger than the slit to ensure that the tarp won't pull through the slit.

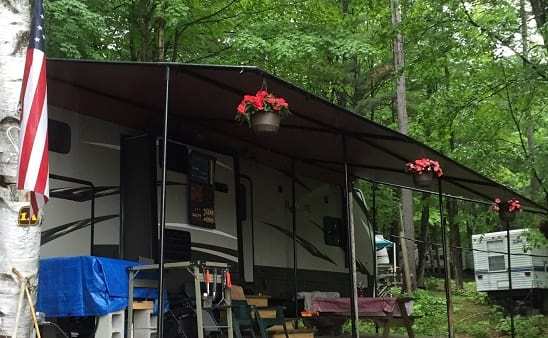

The other edges of your awning will generally contain grommets to allow you to suspend the awning using poles or rope. On the far edge, running parallel to the RV, we can also add a pocket (channel) along the full length of the tarp that would allow you to slide a pipe or dowel through the tarp to keep the awning straight and to make it easier to roll up.

Our tarps are more economical than buying a replacement awning from your trailer supply company and they can be made in the exact size you need. We can also add mesh sides to your awning in order to convert the area under your awning into a screen room. These could be fastened to the awning using grommets or Velcro.

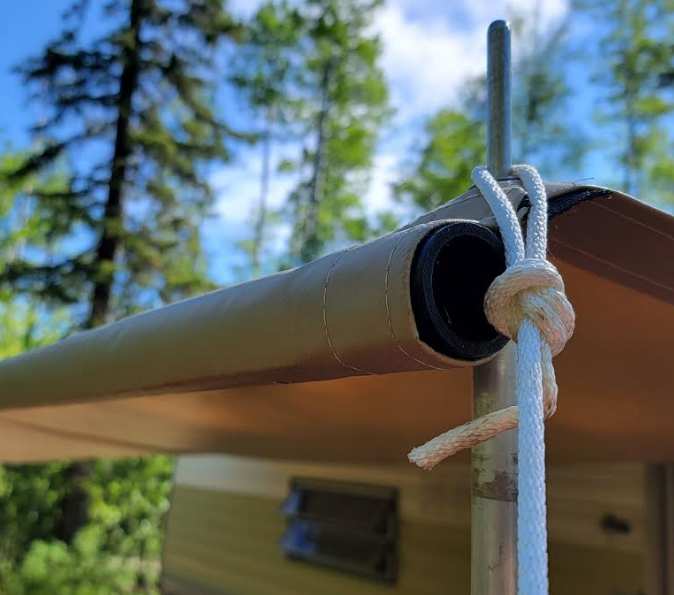

Here we show an example of a trailer awning with a pocket. Before you order the awning, decide what you are going to be inserting into the pocket in order to make sure that the pocket size you order will accommodate the pole diameter.

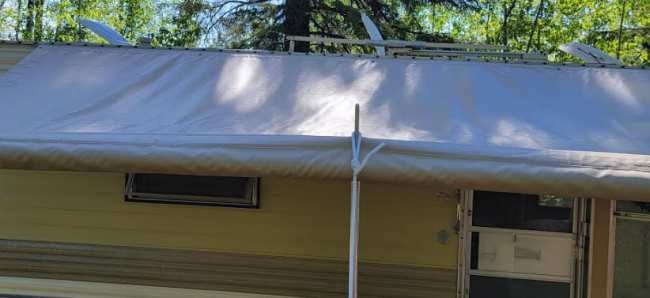

You will need to add a few grommets on the inside edge of the pocket in order to support the awning at several points along the outside edge. Be sure to request larger size grommets to make sure they will accommodate your poles. You will also need to stake the tops of these poles to the ground or alternatively connect these grommets to nearby trees in order to keep the awning taunt.

If you make one end slightly tighter you will direct rain water to the opposite edge. You will want to encourage the runoff to fall to the side where the water is most likely to drain away from your site. You can also place a bucket at that end in order to collect rain water for doing dishes. This will also reduce the weight of rain that pools on the awning to minimize the stress on the supporting grommets.

We can also make skirting for your trailer to allow you to store chairs, cooking supplies, wood, etc. under your trailer while keeping your supplies out of sight.
